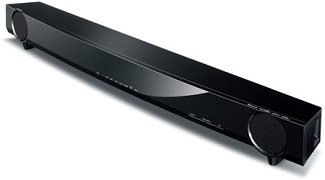

Exceptional Sound Meets Elegant Simplicity

Experience clear, natural sound from a stylish sound bar that's easy to set up and use. The YAS-103 features dual built-in subwoofers for rich bass, a single-cable connection to your TV, and Bluetooth wireless technology that lets you quickly stream music from your mobile devices.

Key Features

• Dual built-in subwoofers for rich bass without the clutter of a separate box
• Easy set up with a single-cable connection to your TV
• Bluetooth wireless music streaming from a smartphone or tablet
• Control app available for Apple iOS and Android devices
• Learning feature lets you use your TV remote to control volume
• Air Surround Xtreme provides immersive surround sound
• Clear Voice makes dialogue easy to hear
• UniVolume keeps programs and ads at a consistent volume level
• Built-in IR flasher ensures reliable remote control even if the sound bar blocks the IR receiver on your TV

Stylish Design

With gently curving lines and piano black finish, the YAS-103 blends harmoniously with your TV and decor. Mount it to a wall using the included and commercially-available hardware or simply place it on your TV stand. The included feet can straddle the base of your TV or can be removed for a lower-profile.

View Larger

Dual Built-in Subwoofers for Deep, Rich Bass

No need for a separate subwoofer unit! The YAS-103 is equipped with two full-range drivers on the front and two down-firing subwoofers integrated discreetly into the bottom of the bar. Together with Yamaha's original Advanced Bass Extension Processing (surround mode only) the bar delivers a surprising abundance of bass for the size.

View Larger

Bass Reflex Port Contributes to Deeper, Richer Bass

The subwoofer drivers, employing large magnets and large-diameter voice coils, work in combination with the large-volume cabinet of the sound bar and bass reflex ports to deliver outstanding bass response. The bass reflex ports have a straight shape and proper length, as well as ducts shaped like trumpet bells, which reduces wind noise for better sound clarity.

View Larger

Bluetooth Wireless Music Streaming from Your Smartphone or Tablet

Fill your home with music the quick and easy way! Stream music from Bluetooth compatible smartphones, tablets, and computers. The YAS-103 can also be set in Bluetooth standby mode, enabling the bar's power to turn on or off automatically for energy-saving convenience.

Control App for Easy Operation

The YAS-103 is compatible with a Home Theater Control App (HT Controller), available for download for Apple iOS and Android devices. The app makes it easy to control the sound bar via a Bluetooth connection, including input selections, surround modes, and other settings.

View Larger

Easy Set Up with a Single-cable Connection

Connect to your large-screen TV with a single digital optical cable — included in the box.

Air Surround Xtreme Provides Powerful Surround Sound

Some sound bars only deliver stereo sound, while others deliver virtual surround sound with inaccurate imaging. The YAS-103 employs Air Surround Xtreme, a Yamaha-exclusive virtual surround technology that reproduces 7.1-channel surround sound with excellent imaging and rich presence, far superior to that of any other sound bar. You'll experience an extremely realistic and impressive sound field, with clear dialogue in the front and dynamic sound action at the back.

TV Remote Repeater for Signal Transmission

Even if the YAS-103 blocks the TV's remote control, the TV Remote Repeater on the back transmits the signal to the TV so operation is not affected.

Use Your TV Remote

The YAS-103 offers a learning feature that allows you to turn the sound bar on/off and control its volume level using your TV's remote control — a great way to reduce the number of remote controls on your coffee table!

Univolume Maintains the Same Volume Level

This welcome feature, made possible by Yamaha-developed technology, maintains a consistent volume level between different channels, programs, commercials, and input sources. It can be switched on and off.

View Larger

Other Notable Features:

• Audio delay control (lip-sync) adjusts the timing of the picture and dialog
• Analog input (dual RCA) on the back panel allow the connection of additional audio sources

Which Yamaha Surround Sound Bar is Right for You?

	Yamaha YAS-103 Check out the Yamaha YAS-103	Yamaha YAS-152 Check out the Yamaha YAS-152	Yamaha YAS-201 Check out the Yamaha YAS-201
General
Technology	Air Surround Xtreme	Air Surround Xtreme	Air Surround Xtreme
Output Power	120 W total: 30 W x dual 2-1/2" cone drivers and 60 W dual built-in 3" subwoofers	120 W total: 30 W x dual 2-1/2" cone drivers and 60 W dual built-in 3" subwoofers	160 W total: 30 W x dual 2-1/8" cone drivers and 100 W powered subwoofer
Drivers	2-1/2" (2)	2-1/2" (2)	2-1/8" (2)
Subwoofer	3" (2)	3" (2)	100 W Powered
Size & Weight
Bar Size (W x H x D)	35" x 4-1/4" x4-3/4"	47-1/4" x 4-1/4" x 5-3/8"	34-7/8" x 3-7/8" x 4-3/4"
Bar Weight	8.8 lbs.	10.6 lbs.	6.83 lbs.
Subwoofer Size (W x H x D)			11-3/8" x 11-1/2" x 12-1/2"
Subwoofer Weight			18.3 lbs.
Connectivity
Digital Inputs	2 optical, 1 coaxial	1 optical, 1 coaxial	2 optical
Analog Audio In/Out	1 in	1 in + 1 in stereo mini-jack
Subwoofer Output		1 out	Wireless
Wireless, Dock/USB
Wireless Music Streaming	Bluetooth wireless technology	Bluetooth wireless technology	iPod / iPhone / iPad (30-pin) with option YIT-W12
Control, IR
TV Remote Repeater	✓	✓	✓
Other
App Control	Home Theater Control App	Home Theater Control App
Remote Contro	Learning function for operation with TV remote	Learning function for operation with TV remote	Learning function for operation with TV remote
Wall-mountable	✓	✓	✓
