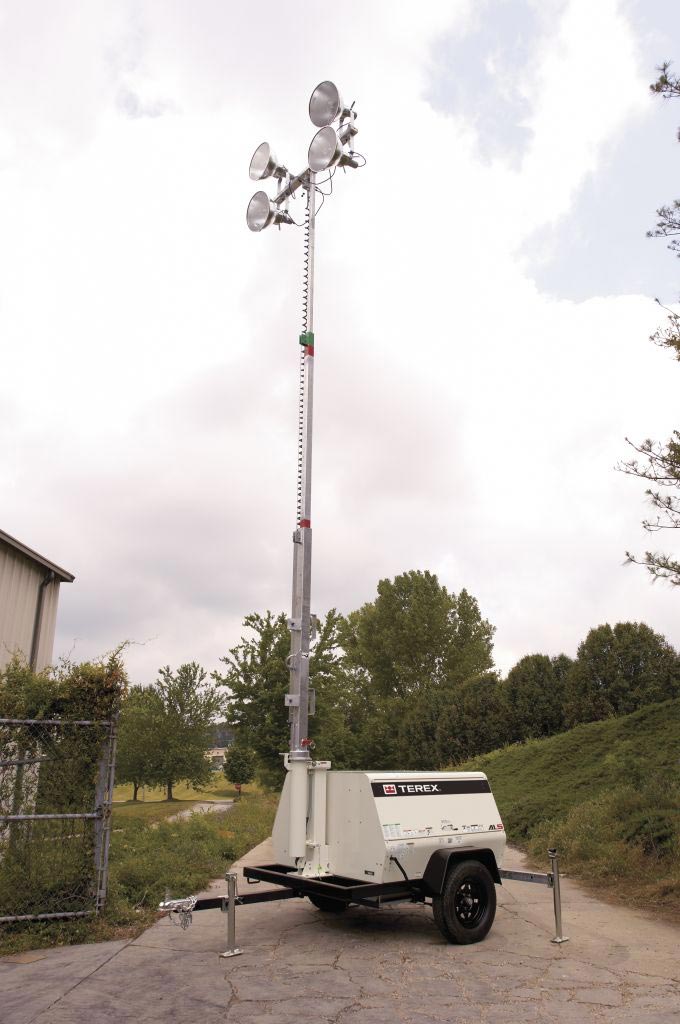

The Terex AL 5 is a 20 kW generator powered metal halide light tower with (4) lamps, a 30' (9.14 m) lift height, and 359-degree non-continuous tower rotation for providing precision light positioning at work sites and events. The AL 5 has (4) 1,000 watt, individually adjustable metal halide lights for providing high intensity light at long distances, and each lamp has an average lifespan of 5,000 to 10,000 hours. This AL 5 light tower is configured for Amazon.com customers.

• Storage racks for light fixtures in the cabinet
• 20 kW generator provides up to 120 hours of continuous use
• Uses metal halide lamps to provide high intensity light

Powerful Operation

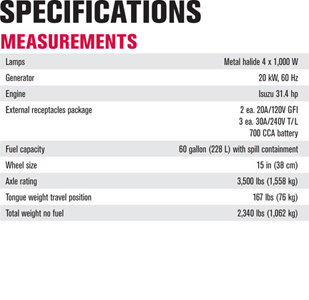

The tower operates on a 60 Hz 20.0 kW generator, with an Isuzu 31.4 hp engine, and a 60 gallon (228 L) tank for providing up to 120 hours of continuous use. The operational temperature range is -40 to 105 degrees F, with standard engine protection shutdowns at high temperature and low oil.

Safe, Weatherproof Design

The AL 5 has a 30' (9.14 m) fully galvanized mast with a single self-braking winch design, and an ergonomically placed handle for raising and lowering the tower. The hand-operated winch is mounted inside the cabinet, as is the control panel for protection from the elements. The power cord is also protected by a rotatable mast sleeve which automatically recoils when raising or lowering the tower. The AL 5 has individual quick-connect plug-in ballasts installed in galvanized steel boxes for simple service and repair, two GFI duplex 20 A/120 V receptacles, three 30 A/240 V T/L receptacles, and one 700 CCA battery. All light fixtures plug into a waterproof box with UL and CAS approved connectors and are protected from the elements in the cabinet. The cabinet has a fade resistant finish for protection in the field.

Easy to Load and Transport

The AL 5 has a single point lifting eye, fork lift pockets for placement at difficult to reach job sites, and galvanized outriggers with pre-set position stops to ensure proper spacing. The light tower has a 2" (50.8 mm) ball coupler for towing, is set on (2) 15" wheels, weighs 2,340 lbs (1,061 kg) with no fuel, and has an axle rating of 3,500 lbs for towing on rough roads. Department of Transportation (DoT) approved tail lights are affixed to the back of the tower for safe transportation.

About Light Towers

Light tower units are used for illuminating work and event sites to maximize nighttime productivity and consist of a tower with a durable base and mast, with a set of lights at the top of the mast that can be rotated and positioned as necessary. Light towers are used for many different applications, including construction, mining, and sporting events. For industrial use only.

About Terex Corporation

Terex Corporation manufactures heavy equipment for material handling, mining, road building, and construction. The company, headquartered in Westport, CT, makes equipment under the Terex, Powerscreen, and Genie brands. Genie products include personnel and material lifts, booms, light towers, and telehandlers.

From construction sites to sporting events, this tower is built to deliver consistent, reliable light.

View detailed PDF.
